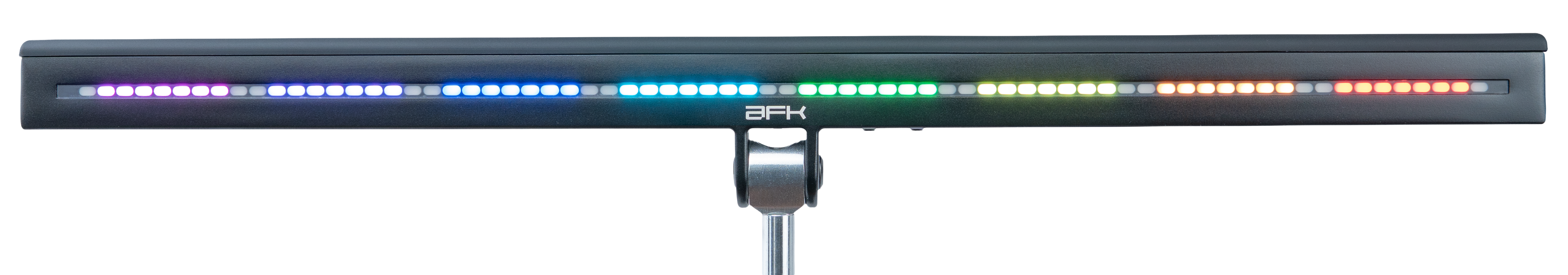

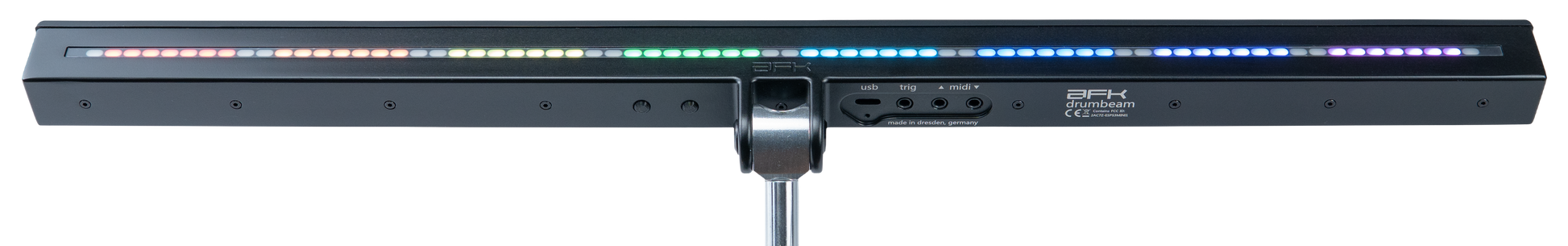

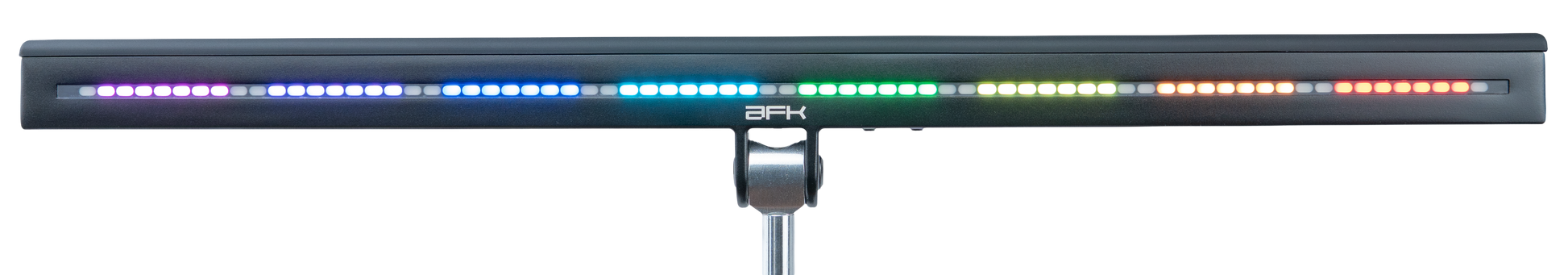

drumbeam is a compact midi-controller that features a wide position and force sensitive interface. you can create various drum zone arrangements and save your changes in individual presets.
ports (usb-c, trigger in, midi in/out)
high grade silicone pad
rgb lightguide (both sides)
preset switches
ports (usb-c, trigger in, midi in/out)
high grade silicone pad
rgb lightguide (both sides)
preset switches
it only takes a few simple klicks to build your individual drumming interface with our config app. set the number, size, brightness and color of zones to your liking, choose different velocity and cc curves and decide whats displayed on the audience side.
no installation or app store. just pair your device with drumbeams wifi network, open drumbeam.local in your web browser and tweak around, while watching your changes in real-time
whole scale position recognition, while ensuring a huge dynamic range. from petting to full force, drumbeam will capture every centimeter and nuance of your expression.
the in-zone hitting position is translated into midi-cc, enabling you to control various parameters or seamlessly blend through samples.
drumbeam captures up to 4 hits at the same time and detects gestures such as squeezing and choking. this offers endless modulation & expression possibilities.
drumbeam is a class compliant usb midi device. its power consumption depends very much on the brightness and color of the leds. with standard brightness settings a typical usb 2 port with 300-450mA power is enough. for the best experience we recommend a stable and well powered connection.

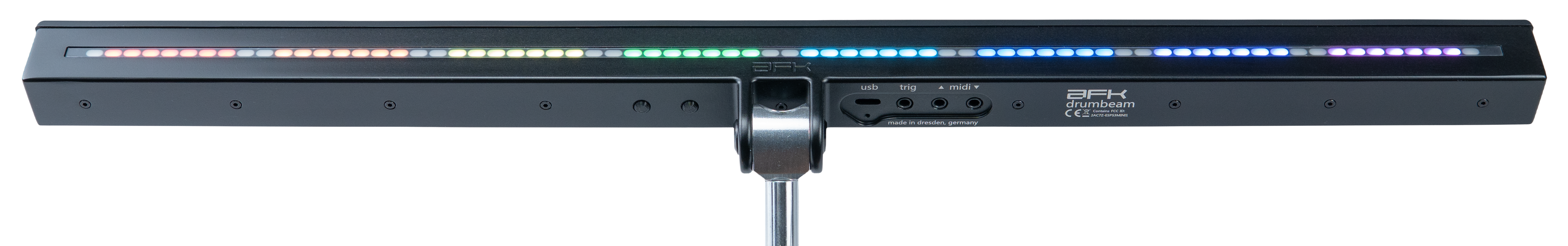

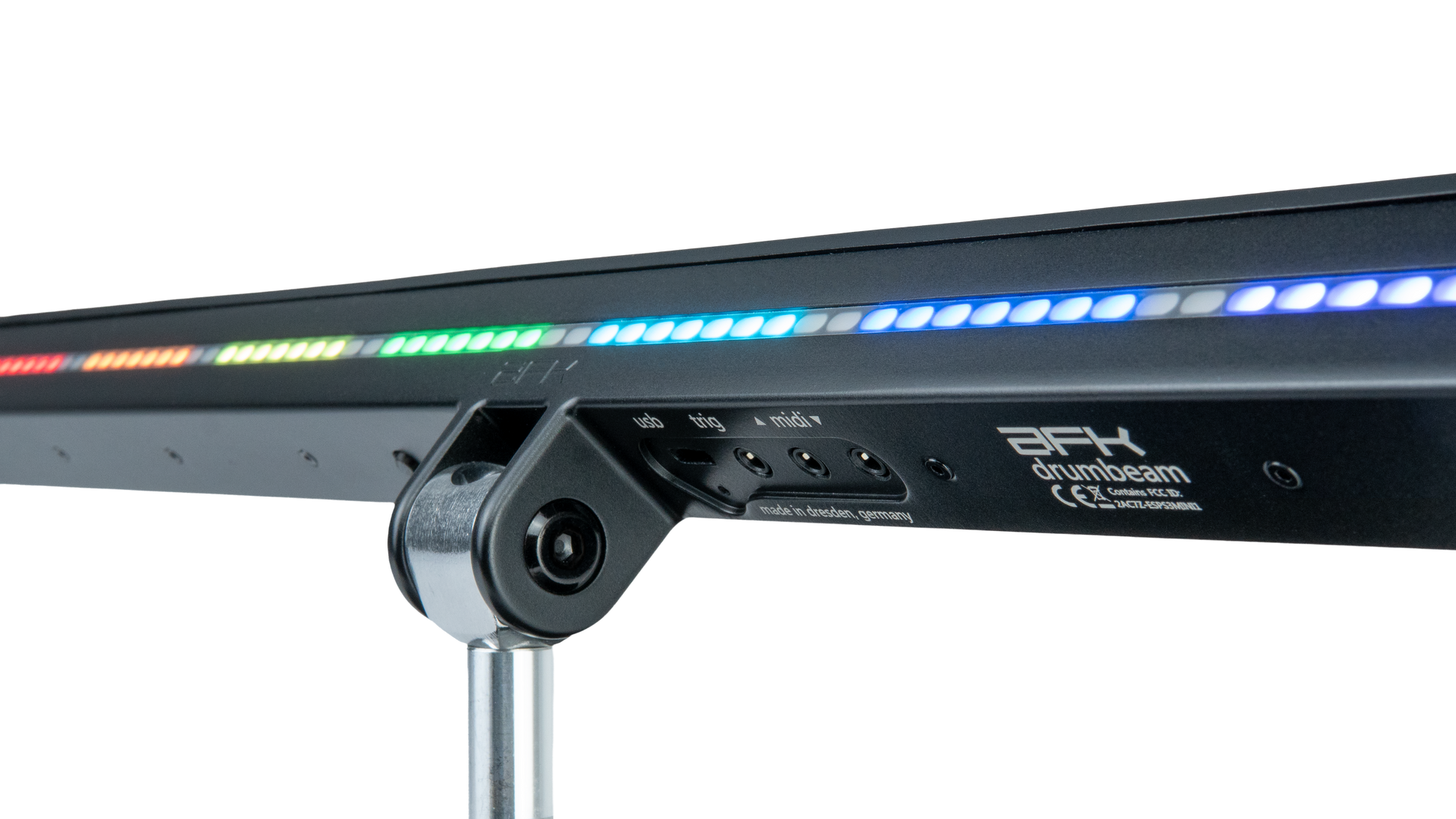

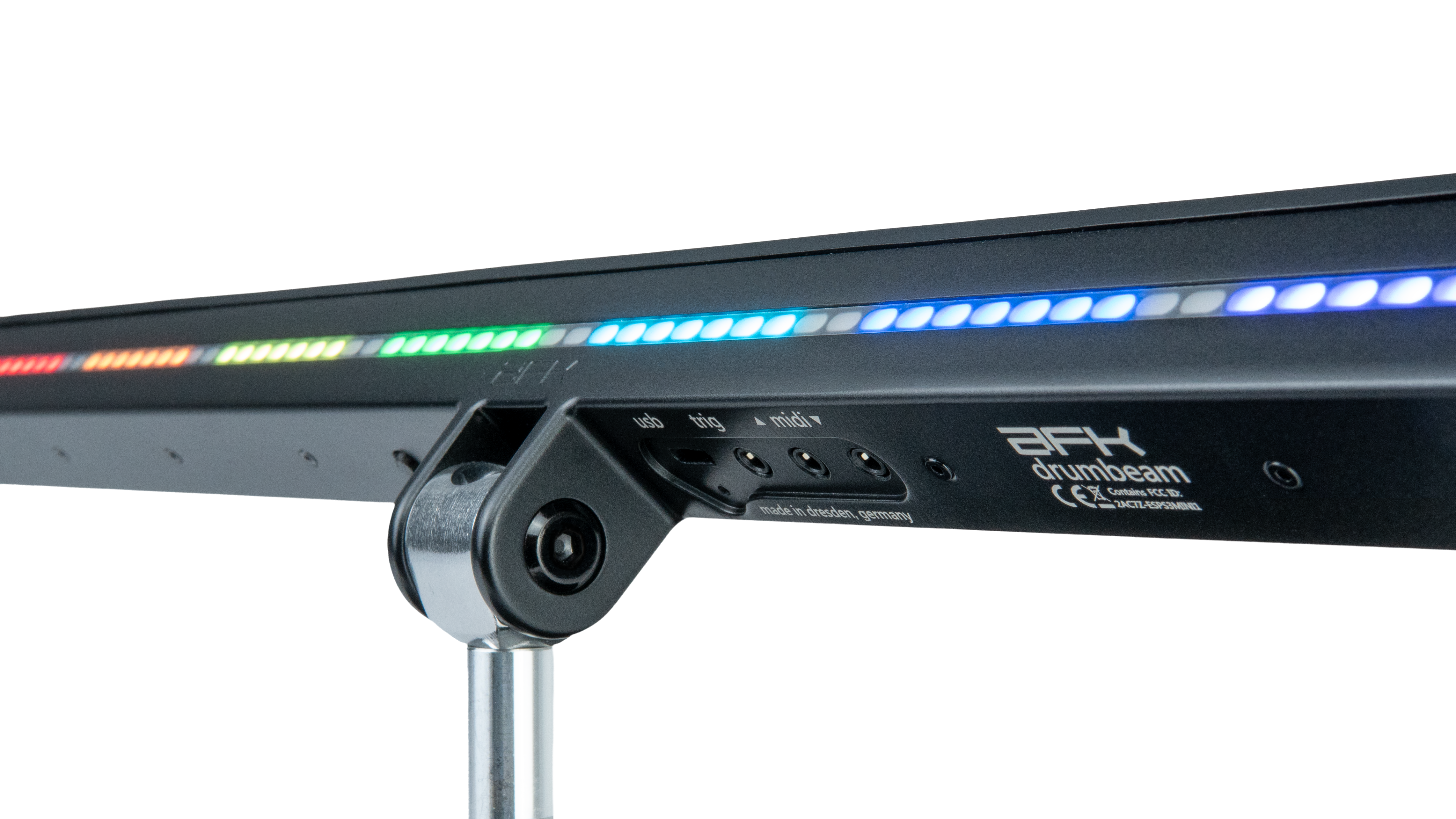

usb-c, trigger-in, trs-midi in + out
drumbeam uses usb-c for sending midi to your daw, plug-in or usb-hosting devices. additionally, there are two trs-ports for midi in and out. this way you can directly connect drumbeam with various samplers, synths or other kind of hardware. we use midi type a.
drumbeam has dimensions of 58 x 3 x 5cm (lenght, width, height) and weighs only slightly more than 800 grams
our configuration app is platform independent and works in every modern browser. just pair your device of choice with drumbeam's wifi network and open drumbeam.local like you would with a classic webpage. thats it - no additional installation needed
